SHOPDRAWING & FABRICATION DETAILING

From digital precision to physical perfection

At Fcrete, shop drawings are not just illustrations, they are production-grade documents, developed directly from our BIM environment to drive accuracy, consistency, and constructability throughout the entire GRC fabrication process.



Model-Based Documentation

All shop drawings are extracted from our fully coordinated 3D models, ensuring:

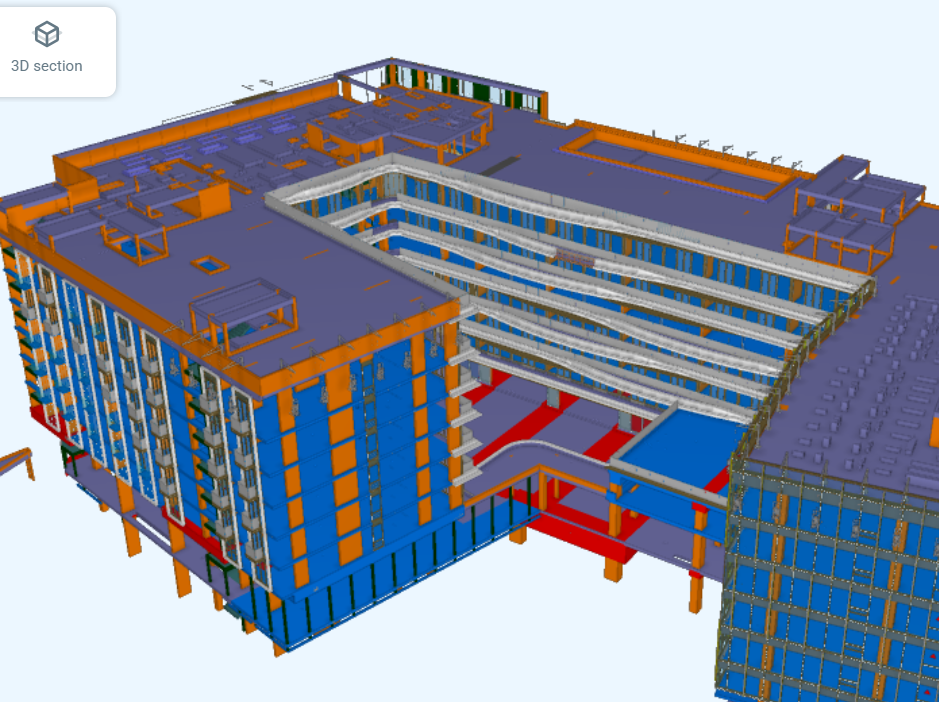

A detailed 3D model is developed to coordinate and resolve all design clashes prior to is

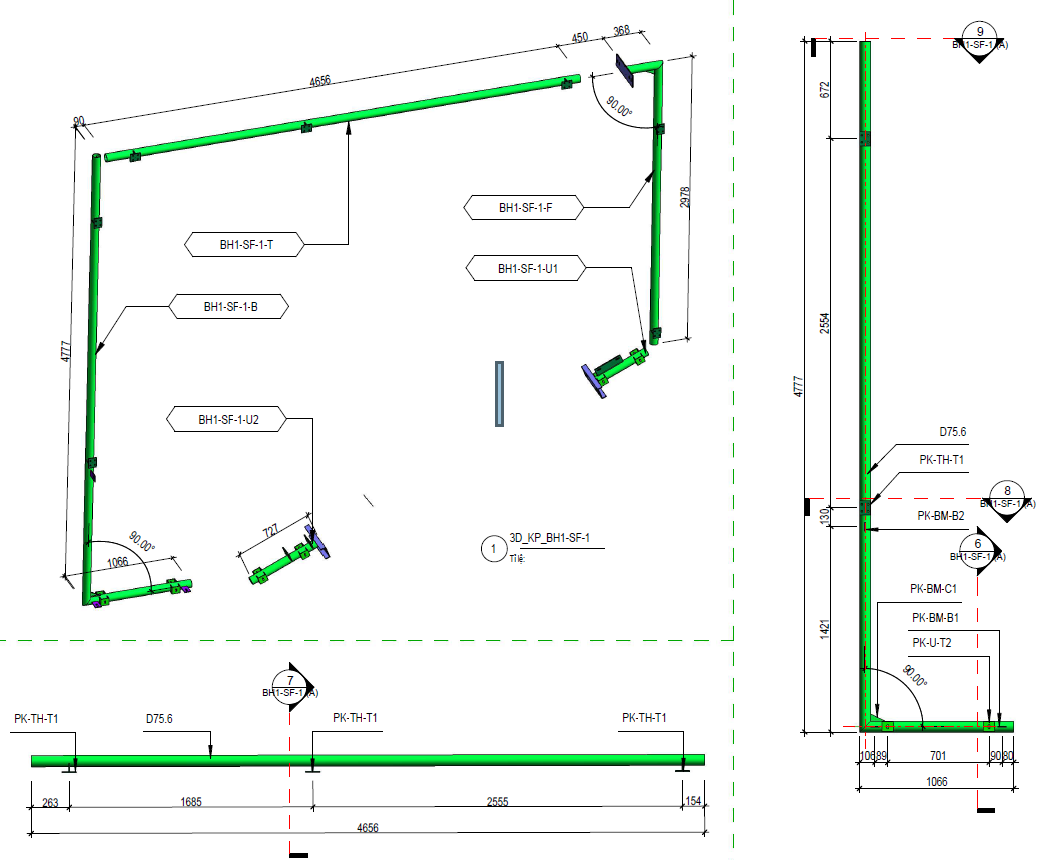

Automatic synchronization of panel ID, dimensions, and cast-in elements

Zero discrepancy between drawings and final geometry

This digital-first workflow minimizes errors and ensures that every dimension, bracket, and insert is accurately represented before casting begins.



Detailing What Matters

Each shop drawing package includes:



Cast-in items such as sleeves, anchors, lifting inserts – all clearly labeled

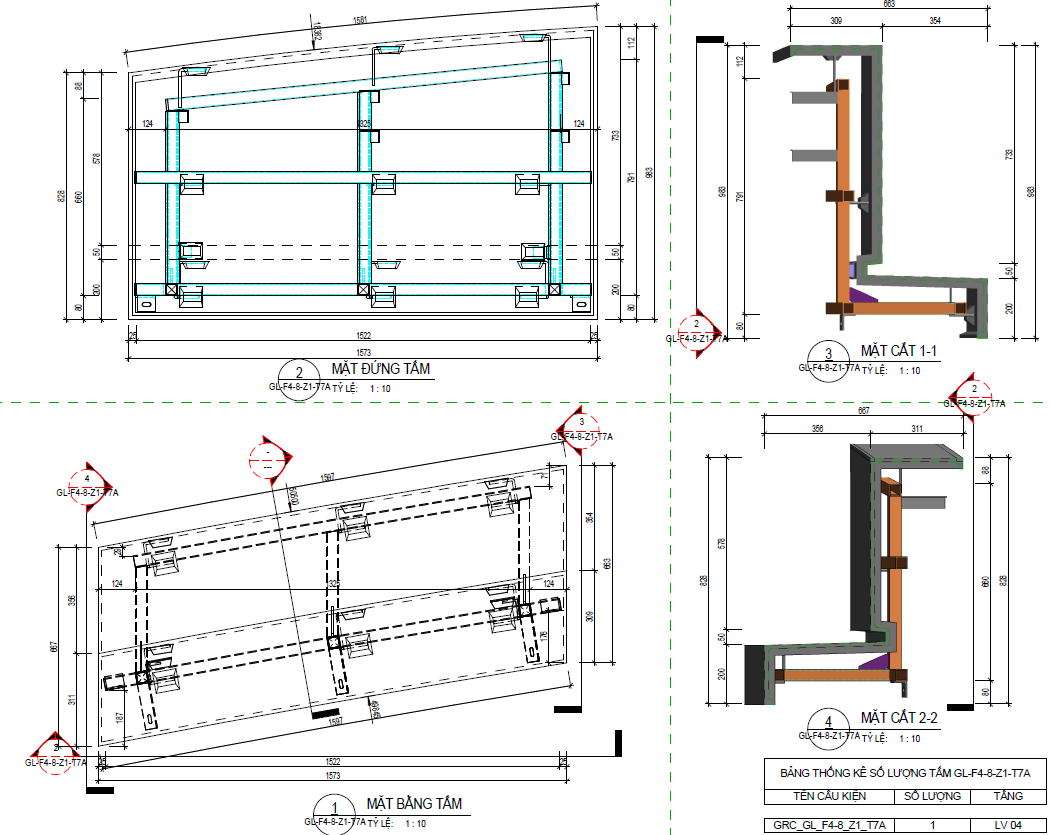

Panel elevations with ID, size, thickness, and orientation

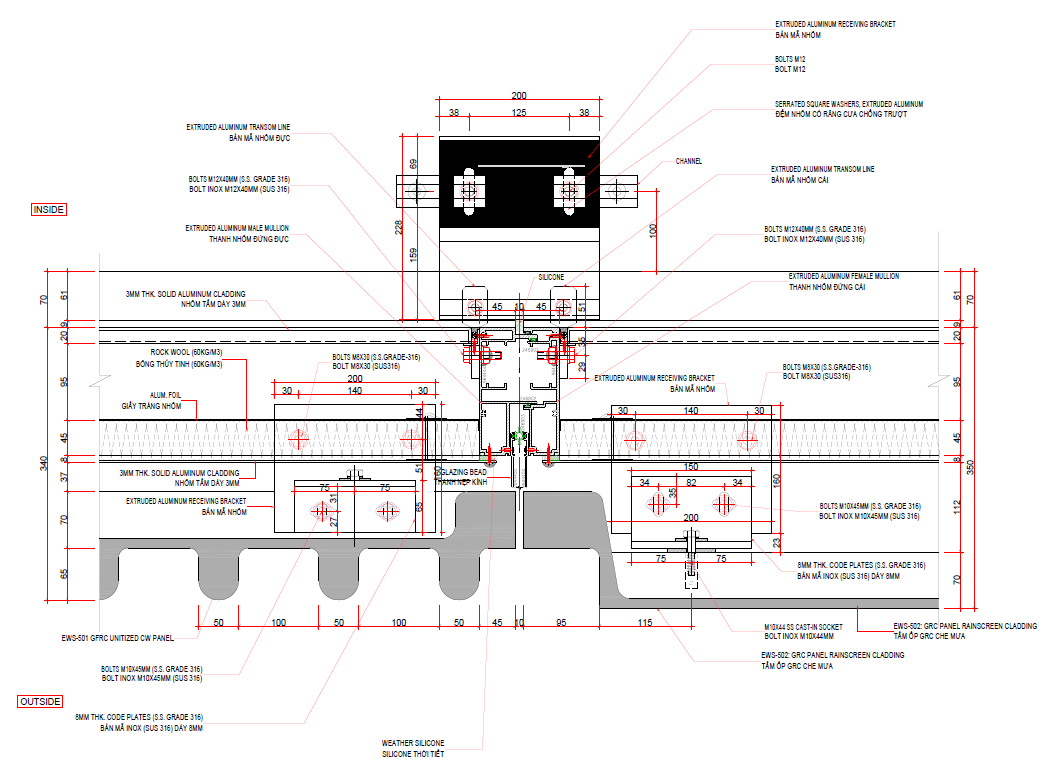

Interface detailing with adjacent systems (windows, corners, reveals)

Section views showing fixing points, ribs, brackets, and joint configurations

We adapt our detailing level to suit each stage of the project — from early coordination to final construction drawings — while keeping everything aligned with on-site tolerances and installation logic.



Fabrication-Ready Outputs

Our documentation feeds directly into the fabrication workflow, providing:



Cutting plans for molds and reinforcement

CNC data for template or panel marking

Coordination files for frame and bracket assembly

Tagging and labeling for packing and transport

The result: a streamlined transition from design to production, reducing rework, shortening lead times, and ensuring that each panel arrives on site exactly as intended.
